HEAT JACKET
HEAT JACKET
| Classification | Description |
|---|---|
|
Product |

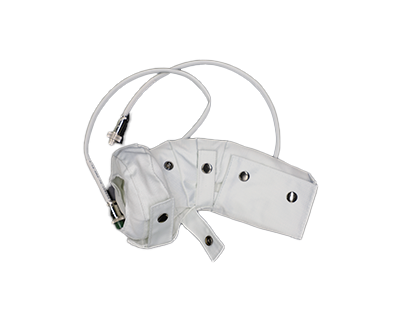

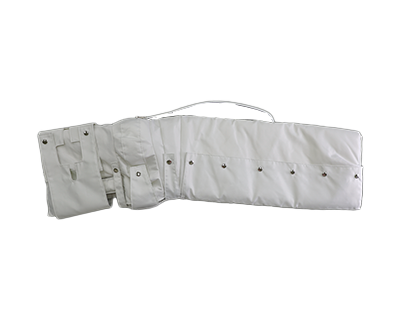

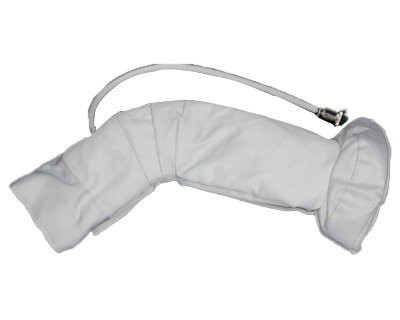

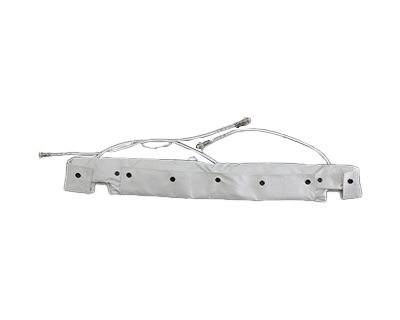

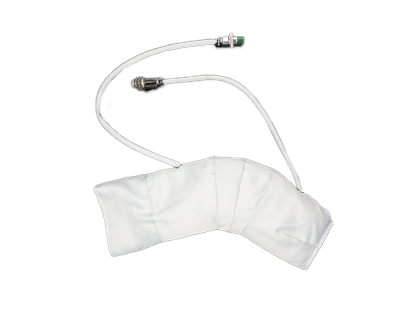

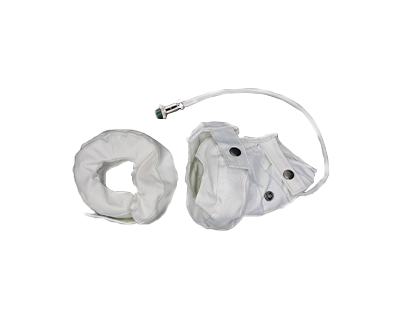

Heating Jacket - PTFE Coated |
|
Material |
Fiber Glass(Teflon Coated) |
|
Application |
Foreline & Outline, Gas Line |
|
Oper. Temp. |
Max. 180 ~200℃ |
|
Main Supply Contractor |
SK-Hynix, etc |
|
Product description |
Detachable metal button Can produce various with no size limitation Shock resistant due to the nature of insulation Teflon coated material enables high temperature use Generates no odor at all |
| Classification | Description |
|---|---|
|
Product |

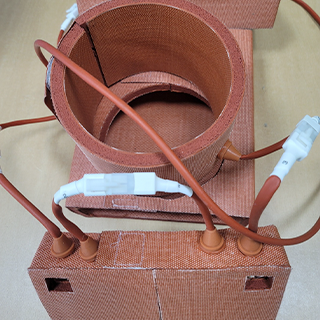

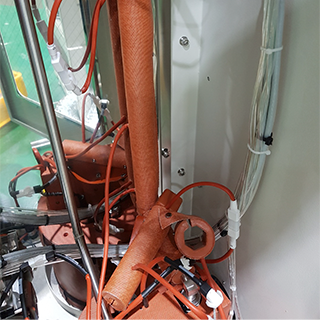

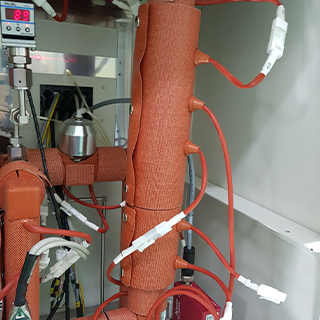

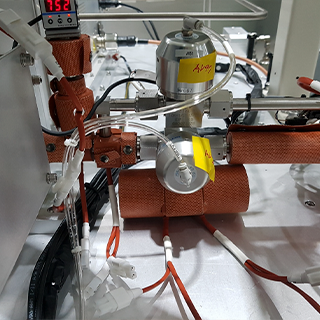

Heating Jacket - Silicon Rubber |
|
Material |
Silicone Rubber |
|
Application |
Inside the equipment, Liquid Gas Line, Pump Exhaust Line, etc |
|
Oper. Temp. |
Max. 180℃ |
|
Main Supply Contractor |
SK-Hynix, Semes, Samsung Electronics, etc |
|
Product description |
Molding Type Heating Jacket Since it is manufactured after designing a mold design to the heating body, it has excellent adhesion and heat transfer ability. Also, it has an great chemical resistance due to the characteristics of silicone material. |
1ch
2ch
3ch
4ch

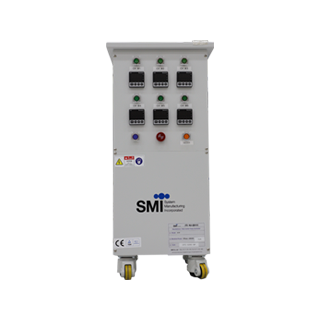

6ch
Insertion type

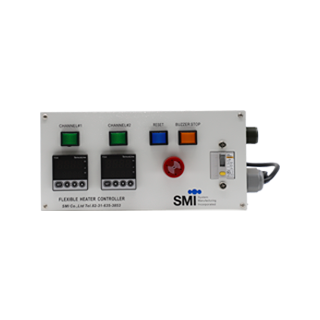

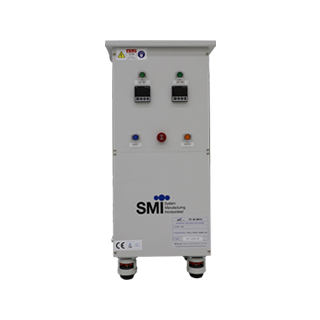

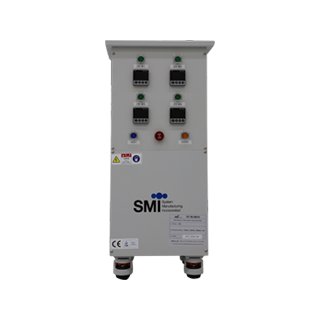

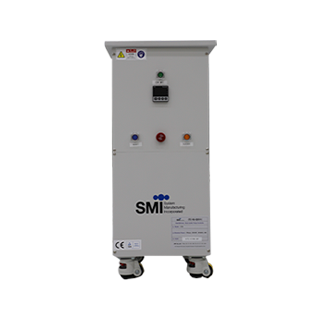

| Control module | TCU(1ch) |
|---|---|
|
Control method |
PID control |
|
Communication method |
RS_485(Two-way remote control) |
|
Supported parameters |
SV, PV, Power(Current) |
|
Channel |
1ch, 2ch, 3ch, 4ch, 6ch, Insertion type, etc |
12ch
Temp control

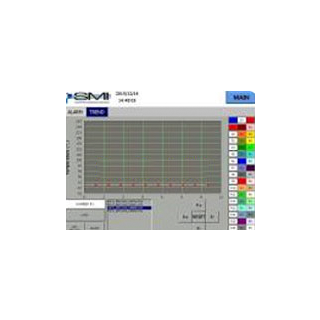

Temp Trend management

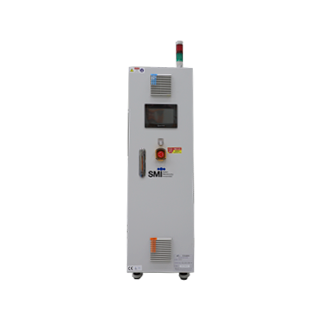

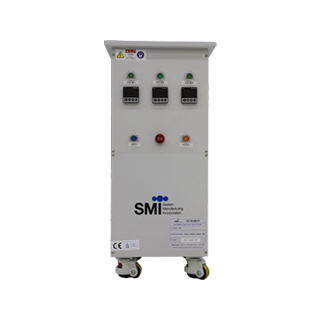

| Control module | TCU(2ch) |
|---|---|
|
Control method |
PID control |
|
Communication method |
RS_485(Two-way remote control), Additional LAN communication |
|
Supported parameters |
SV, PV, Power(Current) |
|
Channel |
16ch, 24ch, 36ch, 48ch |
|
Special features |

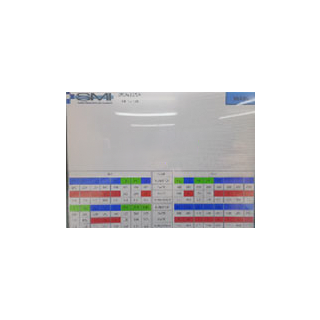

Touch Screen Application & Touch screen & piping type drawing on screen, Temp Trend management |
